FX Detail Photos

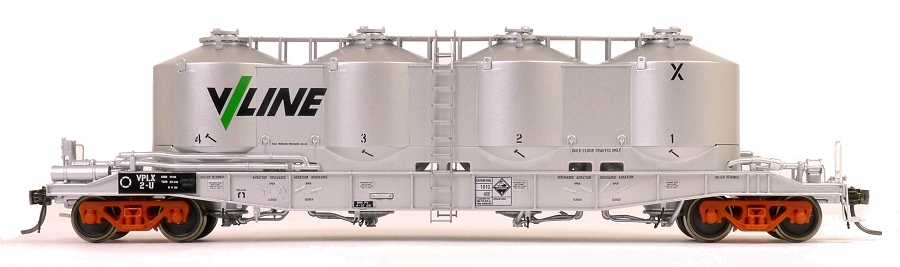

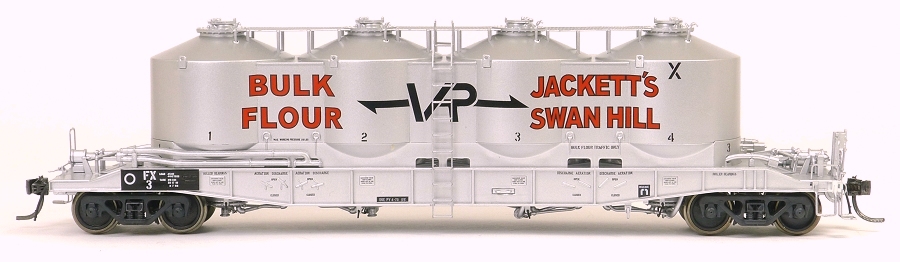

Exact scale reproduction of prototype.

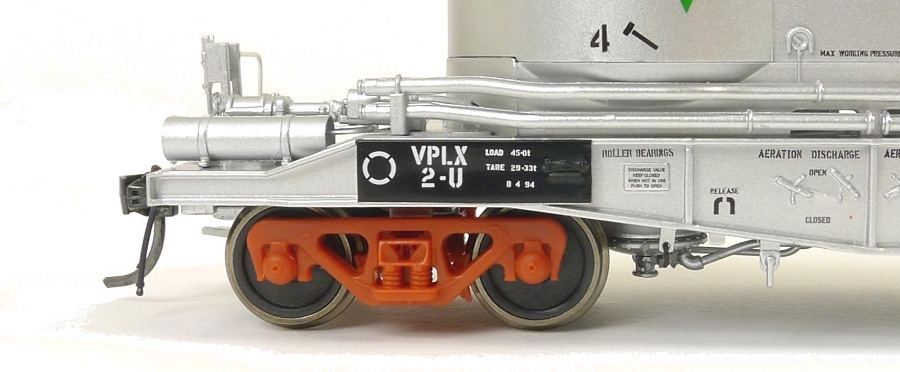

XC Bogie with semi-scale 36" Wheels

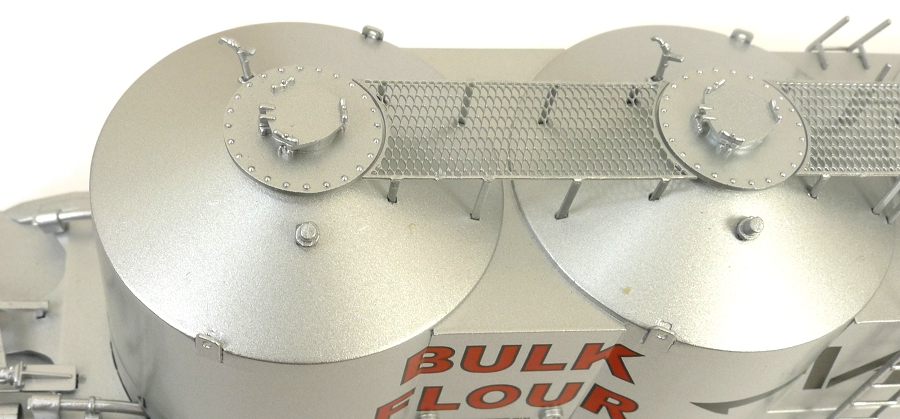

Roof details that include lifting plates, ventilation and filler components and finely edged Roof walks.

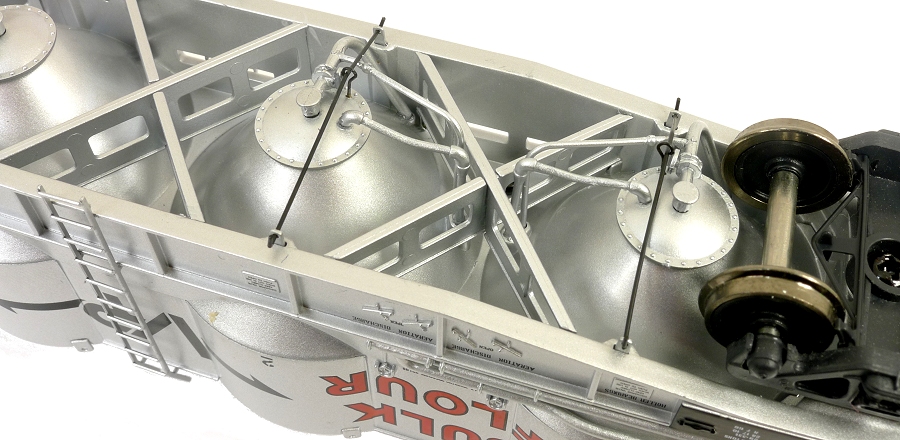

Underfloor detail with cross bracing, full set of piping, actuator bars and correctly shaped hopper cones and flanges.

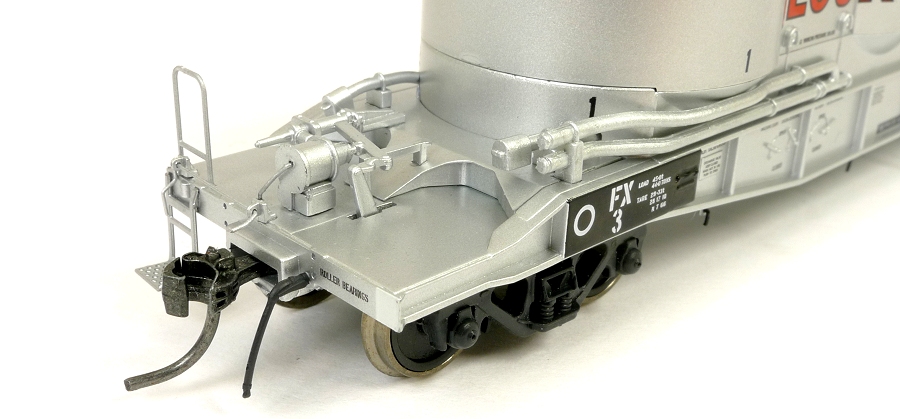

End detail with brake components and the correct number of individual inlet and discharge pipes.

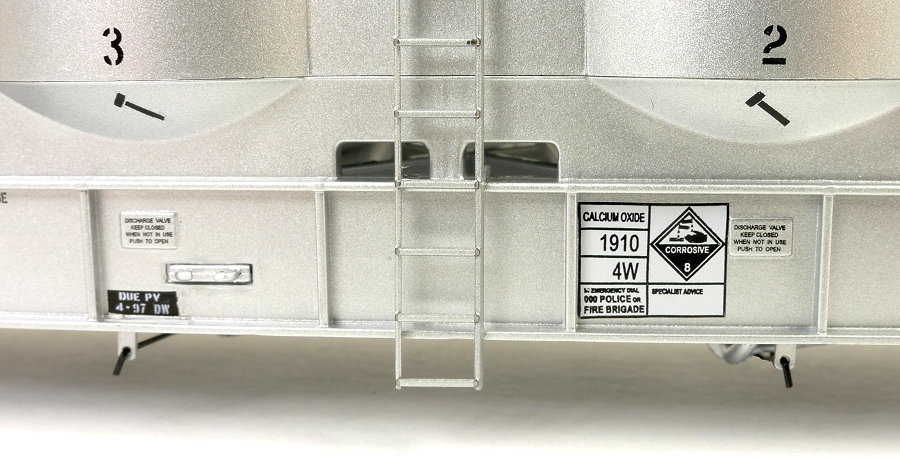

Crisp lettering scaled from the prototype.
